Des-Case Non-Desiccant breathers prevent contamination ingress in low humidity environments or in applications where water-based fluids are in use (e.g. water glycol hydraulic fluid). They help to prevent contamination by preventing free water as well as particles down to 1 micron from getting into the reservoir.
INDUSTRIES
- General Manufacturing
- Mining
APPLICATIONS
- Oil Misting
- Water-Based Fluids
- Oil Sight Glasses
- Gear Drives
- Casting Hydraulics
OPERATING ENVIRONMENTS
- Low Humidity
- Arid Environments
- High Dust
EXPLORE
ND2
1 Rugged Exterior
Durable, shock absorbing housing.
Threaded Mounting
Easily replaces standard filler/breather cap with adapter/reducer options
3 Hydrophobic Filter Element
Particulate filter element repels water and protects against dirt

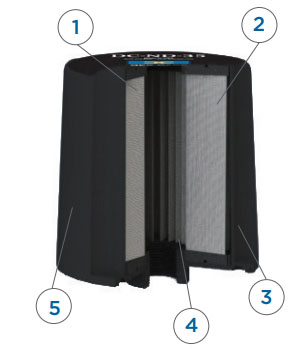

ND35
1 Pleated Element
Pleated filter element protects against particulate contamination
2 Hydrophobic Filter Element
Particluate filter element repels water and protects against dirt
3 Oil Coalescing
ePTFE coating allows oil mist to coalesce
4 Threaded Mounting
Easily replaces standard filler/breather cap with adapter/reducer options
5 Rugged Exterior
Durable, shock-absorbing housing
PRODUCT SPECIFICATIONS
| Product Specs | DC-ND-2 | DC-ND-35 |
|---|---|---|
| Unit Height (in / mm) | 1.4 / 34 | 5 / 127 |
| Unit Diameter (in / mm) | 1.8 / 46 | 5 / 127 |
| Connection Size | 3/8" | 1" Female (FNPT) |
| Max. Flow Rate (cfm) | 0.67 @ 1 psid | 40 @ 1 psid |
| Max. Flow Rate (lpm) | 19 | 1132 |
| Filter Efficiency | 0.3µ absolute (ß3≥200) | 0.3µ absolute (ß3≥200) |
| Operating Temp. Range (°F) | -40° to 300° | -40° to 300° |
| Operating Temp. Range (°C) | -40° to 149° | -40° to 149° |
| Model | Suction / Return Rate Max Airflow at 1 psid (gpm / lpm) | ||
|---|---|---|---|
| Gearbox / Storage Tank Max Volume (Gallons /Litres) | Hydraulic Reservoir Max Volume (Gallons /Litres) | ||
| DC-ND-2 | 5 / 19 | 15 / 57 | 15 / 57 |
| DC-ND-35 | 300 / 1132 | Sizing should be made per flow rate | Sizing should be made per flow rate |
Please Note: This is intended as a general guideline for sizing only; other considerations, such as: humidity level, frequency of air flow, ambient temperatures, and chemical compatibility are very important in sizing a breather properly. Larger applications and special circumstances typically require the most thorough analysis. Please contact Des-Case for assistance in sizing a breather.
| Description | Part Number |
|---|---|
| 1" NPT Vacuum Indicator Adapter (DC-ND-35) | DC-SB-VI |
